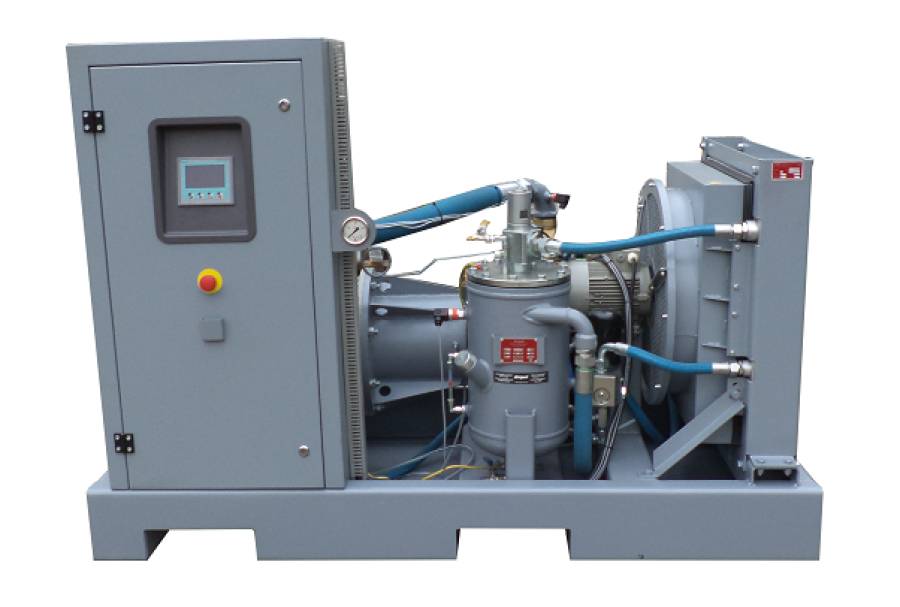

DSC55-32

400V, 500 m3/ uur

DSC55-32
o.a. *Prices are exclusive of VAT
DSC55-32
werkdruk
max 3,2 MPa
zuidruk
0,5-0,6 MPa
capaciteit
500 [m³/h]
gewicht
1200 [kg]
gewicht (axbxc)
2125x1036x1300 [mm]
hoogte inlet
1210 [mm]
hoogte outlet
306 [mm]
inhoud persluchttank
---  [l]
aansluiting op persluchttank (aangezogen lucht)
G2
aansluiting op persluchtank (outlet)
G3/4
omgevingstemperatuur
from 5 to 40  [°C]
luchttemperatuur op outlet [°C]
approx. 20 above ambient temperature
benodigde koellucht
5900 [m³/h]
geluidsniveau
80 [dB(A)]
motorvermogen
55 [kW]
toerental motor
3000 [rpm]
Voedingskabel
3 x 50 + PE [mm²]
voedingsspanning [V]
400 (od -10% do +5%)
